Implementing Jersey 2 Spring integration

4 Comments Posted by on 2014-02-08

Jersey is the excellent Java JAX-RS specification reference implementation from Oracle. Last year, when we were starting to build RESTful backend web services for a high-volume website, we chose to use the JAX-RS API as our REST framework and Spring framework for dependency injection. Jersey was our JAX-RS implementation of choice.

When the project was started JAX-RS API 2.0 specification was not yet released, and neither was Jersey 2.0. Since we didn’t see any fundamental deficiencies with JAX-RS 1.1, and because a stable Spring integration module existed for Jersey 1.1, we decided to go with the tried-and-true version instead of taking on the bleeding edge.

Still, I was curious to learn what could be gained by adopting the newer version, so I started looking at the JAX-RS 2 API on my free time and doing some prototyping with Jersey 2. I noticed that Jersey 2 lacked Spring framework integration that was available for the previous version. Studying the issue further, I found that the old Spring integration module would not be directly portable to Jersey 2. The reason was that Jersey 1 builds on a custom internal dependency injection framework while Jersey 2 had switched to HK2 for dependency injection. (HK2 is an interesting, light-weight dependency injection framework used in GlassFish.)

My original goals for Jersey-Spring integration were fairly simple:

inject Spring beans declared in application context XML into JAX-RS resource classes (using @Autowired annotation or XML configuration)

So, I thought I’d dig a bit deeper and started looking into Jersey source code. I was happy to notice that Jersey development was being done in an open and approachable manner. The source code was hosted on GitHub and updated frequently. After a while of digging, a high-level design for Jersey Spring integration started to take shape. It took quite some experimenting and many iterations before the first working prototype. At that point, being an optimist, I hoped I was nearly done and contacted the jersey-users mailing list to get feedback on the design and implementation. The feedback: add more use cases, provide sample code, implement test automation, sign Oracle Contributor Agreement 🙂 (The feedback, of course, was very reasonable from the Jersey software product point of view). So, while it wasn’t quite back to the drawing board, but at this point I realized the last mile was to be considerably longer than I had hoped for.

Eventually, though, the Jersey-Spring integration got merged in Jersey 2 code base in Jersey v2.2 release. The integration API is based on annotations and supports the following features:

  • inject Spring beans into Jersey managed JAX-RS resource classes (using org.springframework.beans.factory.annotation.Autowired or javax.inject.Inject). @Qualifier and @Named annotations can be used to further qualify the injected instance.
  • allow JAX-RS resource class instance lifecycle to be managed by Spring instead of Jersey (org.springframework.stereotype.Component)
  • support different Spring bean injection scopes: singleton, request, prototype. Bean scope is declared in applicationContext.xml.

The implementation

Source code for the Jersey-Spring integration can be found in the main Jersey source repository:
https://github.com/jersey/jersey/tree/2.5.1/ext/spring3/src/main/java/org/glassfish/jersey/server/spring

Jersey-Spring integration consists of the following implementation classes:

org.glassfish.jersey.server.spring.SpringComponentProvider
This ComponentProvider implementation is registered with Jersey SPI extension mechanism and it’s responsible for bootstrapping Jersey 2 Spring integration. It makes Jersey skip JAX-RS life-cycle management for Spring components. Otherwise, Jersey would bind these classes to HK2 ServiceLocator with Jersey default scope without respecting the scope declared for the Spring component. This class also initializes HK2 spring-bridge and registers Spring @Autowired annotation handler with HK2 ServiceLocator. When being run outside of servlet context, a custom org.springframework.web.context.request.RequestScope implementation is configured to implement request scope for beans.

org.glassfish.jersey.server.spring.AutowiredInjectResolver
HK2 injection resolver that injects dependencies declared using Spring framework @Autowired annotation. HK2 invokes this resolver and asks it to resolve dependencies annotated using @Autowired.

org.glassfish.jersey.server.spring.SpringLifecycleListener
Handles container lifecycle events. Refreshes Spring context on reload and close it on shutdown.

org.glassfish.jersey.server.spring.SpringWebApplicationInitializer
A convenience class that helps the user avoid having to configure Spring ContextLoaderListener and RequestContextListener in web.xml. Alternatively the user can configure these in web application web.xml.

In addition to the actual implementation code, the integration includes samples and tests, which can be very helpful in getting developers started.

The JAX-RS specification defines its own dependency injection API. Additionally, Jersey supports JSR 330 style injection not mandated by the JAX-RS specification. Jersey-Spring integration adds support for Spring style injection. Both JAX-RS injection and Spring integration provide a mechanism for binding objects into a registry, so that objects can later be looked up and injected. If you’re using a full Java EE application server, such as Glassfish, you also have the option of binding objects via the CDI API. On non-Java EE environments it’s possible to use CDI by embedding a container implementation such as Weld. Yet another binding method is to use Jersey specific API. The test code includes a JAX-RS application class that demonstrates how this can be done.

Modifying Jersey-Spring

If you want to work on Jersey-Spring, you need to check out Jersey 2 code base and build it. That process is rather easy and well documented:

https://jersey.java.net/documentation/2.5.1/how-to-build.html

You simply need to clone the repository and build the source. The build system is Maven based. You can also easily import the code base into your IDE of choice (tried it with IDEA 12, Eclipse 4.3 and NetBeans 8.0 beta) using its Maven plugin. I noticed, however, that some integration tests failed with Maven 3.0, and I had to upgrade to 3.1, but apart from that there weren’t any issues.

After building Jersey 2 you can modify the Spring integration module, and build only the changed modules to save time.

Tests

Jersey-Spring integration tests have been built using Jersey test framework and they’re run under the control of maven-failsafe-plugin. Integration tests consist of actual test code and a JAX-RS backend webapp that the tests exercise. The backend gets deployed into an external Jetty servlet container using jetty-maven-plugin. Jersey-Spring tests can be executed separately from the rest of the tests. Integration tests can be found in a separate Maven submodule here:

https://github.com/jersey/jersey/tree/2.5.1/tests/integration/spring3

In addition to demonstrating the basic features of Jersey-Spring, the tests show how to use different Spring bean scopes: singleton, request, prototype. The tests also exhibit using a JAX-RS application class for registering your own dependencies in the container, in different scopes.

Conclusions

I think the JAX-RS 2.0 API provides a nice and clean way of implementing RESTful interfaces in Java. Development of the Jersey JAX-RS reference implementation is being conducted in an open and transparent manner. Jersey also has a large and active user community.

As noted by Frederick Brooks, Jr.: “All programmers are optimists”. It’s often easy to underestimate the amount of work required to integrate code with a relative large and complex code base, and in particular when you need to mediate between multiple different frameworks (in this case Jersey, HK2, Spring framework). Also, though Jersey has pretty good user documentation, I missed high-level architectural documentation on the design and implementation. A lot of poking around was needed to be able to identify the correct integration points. Fortunately, the Jersey build system is pretty easy to use and allows building only selected parts, which makes experimenting and the change-build-test cycle relatively fast.

Both Jersey and Spring framework provide a rich set of features and you can use them together in a multitude of ways. Jersey-Spring integration in it’s current form covers a couple of basic integration scenarios between the two. If you find that your particular scenario isn’t supported, join the jersey-users mailing list to discuss it. You can also just check out the code, implement your changes and contribute them by submitting a pull request on GitHub.

Advertisement
development , , , , , ,

Getting started with Oracle WLS 12c

1 Comment Posted by on 2012-09-16

I’ve been developing software for different incarnations of the Oracle Application Server in the past (Oracle OC4J 10g R3 and BEA/Oracle WebLogic (v8.1 and v10.3), but it’s been quite a while since my last encounter with the server. During recent years I’ve been involved mostly with other application servers. Despite occasional hiccups, I had been reasonably satisfied with the server, so I was curious to give the latest version of Oracle’s application server a quick test drive. Having a background in software development, I thought I’d approach this first from a developer perspective, checking out how the application development workflow (including code, build, deploy) feels like with the latest version. Obviously, much of the workflow is actually about generic Java EE development (as opposed to app server specific development) as long as you adhere to the standard, but I’ve felt that trying simulate the development workflow gives you a more complete view of what it’s like to work with a particular app server product. Instead of coding a Java EE app myself or porting an existing one, I thought I’d work with sample applications made available by others.

Installing Oracle WebLogic Server

There are several options for getting WebLogic running for development purposes: a) use Oracle JDeveloper and the embedded WLS server b) use the IDE of your choice and the WLS zip distribution c) use the IDE of your choice and the full WLS. Since the focus of my test was to check out WLS for development purposes (but not JDeveloper), I chose option b.

So, I downloaded the following WLS distributions from Oracle:

  • WLS Zip Distribution for Oracle WebLogic Server 12.1.1.0
  • WLS Supplemental Zip Distribution for Oracle WebLogic Server 12.1.1.0

The first distribution includes the application server itself and weighs approximately 184 MB. The second one includes sample code.

The installation process is pretty well documented in the WLS package README files but there were a few small gotchas, though. The supplemental zip distribution also includes a nice set of documentation, including architecture description, for the samples in found in $MW_HOME/wlserver/samples/server/index.html.

Here’s the installation procedure I used:
(The text below has been written for Mac OS X and assumes WLS has been installed in $HOME/opt/wls1211_dev but it should be trivial to adapt the instructions for other configurations.)

# 1. extract WLS (see README.txt in WLS package)
mkdir wls1211_dev
cd wls1211_dev
unzip ~/Downloads/wls1211_dev.zip

# 2. set environment variables
export JAVA_HOME=/System/Library/Frameworks/JavaVM.framework/Versions/1.6/Home
export USER_MEM_ARGS="-Xmx1024m -XX:MaxPermSize=256m"
export MW_HOME=$HOME/opt/wls1211_dev

# 3. run the installation script
. ./configure.sh

We’ll skip WLS domain creation for now, because the samples setup script creates one for us, and start up and move straight to installing the WLS supplemental distribution.

# wls supplement (see README_SUPP.txt)
unzip ~/Downloads/wls1211_dev_supplemental.zip

# 64-bit environments
. wlsenv.properties

# create WLS domain, server, database etc.
./run_samples.sh

This script sets up a WLS domain, WLS server and a database server for the sample application, configures datasources etc. When I tried to start up the sample domain at this point, I received an error about JRE not being found, so decided to reset the environment variables by firing up a new shell session and then set the WLS environment variables again:

# start up WLS sample domain
export MW_HOME=$HOME/opt/wls1211_dev
export JAVA_HOME=/System/Library/Frameworks/JavaVM.framework/Versions/1.6/Home
export USER_MEM_ARGS="-Xmx1024m -XX:MaxPermSize=256m"
$MW_HOME/wlserver/samples/domains/medrec/startWebLogic.sh

If you have a GUI session with your OS, a web browser should open up with the sample application page.

Sample app #1: MedRec

Oracle provides a WLS supplemental zip distribution aimed at development use. The supplement includes code samples demonstrating various aspects of using different Java EE technologies. It also includes a complete Java EE v5.0 (why not v6.0?) sample application called Avitek Medical Records or MedRec. It claims to “showcase the use of each Java EE component, and illustrates best practice design patterns for component interaction and client development“.

After I got the application server and sample application up and running I wanted to start browsing the application source code and see how to make modification.

You can build and deploy the sample application using the following commands:

# set up the environment for the build
export MW_HOME=$HOME/opt/wls1211_dev
. $MW_HOME/wlserver/samples/domains/medrec/bin/setDomainEnv.sh
cd $WL_HOME/samples/server/medrec

# build + deploy
ant -Dnotest=true deploy

The Ant command will build and deploy the new application version, if you have the application server up and running. (Environment variables set by the WLS installation scripts appeared to interfere somehow with the ones set by setDomainEnv.sh and I had to start a new shell session to make the build work.)

The sample application includes Eclipse project and classpath files, so you can easily import the application code in Eclipse (e.g. Juno). The application depends on different Java EE and third-party APIs that are bundled with the application, so you’ll end up seeing lots of errors in Eclipse. The easiest way to get the source code imported and classpaths set up correctly is to use the Oracle provided Eclipse distribution (Oracle Enterprise Pack for Eclipse [v12c for Eclipse Juno]). Here’s how to import the code in OEPE and create a WLS 12c runtime configuration:

  • create new workspace
  • configure WebLogic server runtime
    select: window / show view / other
    server / servers
    new server wizard
    select server type: Oracle / Oracle WebLogic Server 12c
    and fill in the following:
    WebLogic home: $HOME/opt/wls1211_dev/wlserver
    Java home: /System/Library/Frameworks/JavaVM.framework/Versions/1.6/Home
    Domain directory: $HOME/opt/wls1211_dev/wlserver/samples/domains/medrec
  • import MedRec source code
    file / import: general / existing projects into workspace
    select root directory: $HOME/opt/wls1211_dev/wlserver/samples/server/medrec
  • select all 12 projects
    configure target server runtime for each project
    select project / properties / server or targeted runtimes and choose “Oracle WebLogic Server 12c”. Uncheck WebLogic 10.3 version.
  • refresh all projects

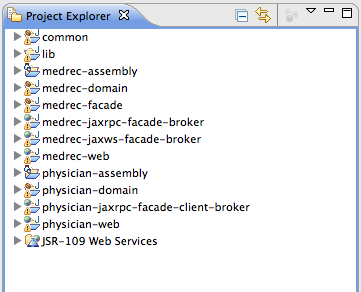

At this point your Eclipse project explorer should look like this and you should be able to do a full modify-build-deploy cycle:

Sample app #2: Pet Catalog

The Pet Catalog is a Java EE 6 sample application that demonstrates usage of JavaServer Faces 2.0 and the Java Persistence API. It’s based on a three-tiered architecture on a logical level, but both the presentation and logic tier components are packaged in a single WAR module.

With the first sample app, we were able to skip creating a WLS domain because the installation script created one for us, but now we’ll have to create one. In WLS, the concept of a domain refers to a logically related group of WLS servers and/or server clusters that are managed as a unit. Each domain has an administration server, which is used to configure, manage and monitor other servers and resources in that domain. Additional servers in the domain are called managed servers, which are used for deploying and executing Java EE artifacts. The administration server is meant to be used only for administration, though you can deploy applications to it in development installations.

Creating a WLS domain

# setup WLS environment
export JAVA_HOME=/System/Library/Frameworks/JavaVM.framework/Versions/1.6/Home
export USER_MEM_ARGS="-Xmx1024m -XX:MaxPermSize=256m"
export MW_HOME=$HOME/opt/wls1211_dev
. $MW_HOME/wlserver/server/bin/setWLSEnv.sh
# create a new WLS domain and start WLS
mkdir -p $HOME/wls/dom1
cd $HOME/wls/dom1
$JAVA_HOME/bin/java $JAVA_OPTIONS -Xmx1024m -XX:MaxPermSize=256m weblogic.Server

Building the application

The source code links found on the sample app web pages didn’t seem to be working. The application source code comes bundled with NetBeans 7.2 Java EE, however so you can get the source code from NetBeans by choosing:

File / New Project
choose project: samples / Java EE / Pet Catalog

Java’s “Write once, run anywhere” is a great value proposition, but especially in Java EE space delivering on that proposition has been lacking. Portability issues arose also in this case, when I tried deploying to WLS the Pet Catalog app, that apparently had been tested mostly on GlassFish. The actual issue seemed to be related more with the particular JPA implementation (EclipseLink) than standard JPA, but I think it’s telling evidence of portability issues since this is supposed to be a standard Java EE showcase sample application. Once, I managed to find out what was causing the issue, fixing it was simple. Often application servers have their own, sometimes very unintuitive, ways of reporting issues and troubleshooting is an area where experience in your particular application server product can really make a big difference. Also, often with well-architected applications, it’s the packaging and deployment where portability problems typically arise, instead of the actual code.

In this case I ran into a problem with datasource authentication. To fix the deployment issue I had to modify the persistence unit definition in persistence.xml by commenting out eclipselink.jdbc.user and eclipselink.jdbc.password parameters.

Deploying the application

Create and initialize the database

Pet Catalog uses a MySQL database for persisting data. A database, tables and a user account must be created before deploying the application.

create database petcatalog;
GRANT ALL ON petcatalog.* TO 'pet1'@'localhost' IDENTIFIED BY 'pet1';
cat setup/catalog.sql | /usr/local/mysql/bin/mysql -h 127.0.0.1 -P 3406 -u pet1 -f -p petcatalog
Create a Data Source

Once you’ve set up the database, the database connection or datasource needs to be configured in the application server. To do this, log on to WLS console and do the following:

Choose: Services / Data Sources / New / Generic Data Source

Then on “JDBC Data Source Properties” page fill in the following:

  • Name: petCatalogDS
  • JNDI Name: jdbc/petcatalog
  • Database Type: MySQL
  • Database Driver: MySQL’s Driver (Type 4) Versions:using com.mysql.jdbc.Driver

And on “Transaction Options” page:

  • Supports Global Transactions
  • One-Phase Commit

Then “Connection Properties”:

  • Database Name: petcatalog
  • Host Name: localhost
  • Port: 3406
  • Database User Name: pet1
  • Password: pet1

Test Database Connection

And finally on “Select Targets” page choose the server to deploy to:

  • myserver
Deploy WAR

Finally, deploy the application WAR to WLS. The application should run without customizing any deployment parameters.

Conclusions

In my quick test drive I focused mostly on the development workflow related aspects of the WebLogic server (developer distribution), and not operational aspects such as scalability, availability, reliability, operability etc. WLS appears to be a capable, feature rich Java EE application server, as could be expected from a major vendor, but the zip distribution was also relatively light-weight and ran quite well on my laptop.

WLS has very nice server administration capabilities: you can easily view and edit the configuration using command line tools, but a comprehensive web-based administration console is also available that allows you to perform any server administration task. The server configuration is persisted in XML files (e.g. config.xml) that are stored under a single filesystem directory tree, which makes it easy to compare and migrate configuration files. The console just enables administrators to manipulate these configuration files through a web UI. The web console has a much more comprehensive feature set than e.g. the one in Jboss EAP 5. WebLogic also features a command-line scripting environment (WLST) that you can use to create, manage, and monitor WLS domains. Due to XML based configuration and scripting support backup and recovery of server configuration, as well as taking snapshots and rolling back changes should be easy. Deploying the exact same configuration should be simple as well.

It seems odd that the sample application doesn’t showcase all the new features of the latest-and-greatest Java EE specification version that the WebLogic server supports. Also, the basic development mode installation could’ve been made simpler still, similar to some other app servers where you only need to do a simple unzip. Production installation is of course an entirely different story.

development , ,

Using Oracle SQLDeveloper with MySQL

Leave a comment Posted by on 2012-08-03

Oracle SQLDeveloper is a tool I’ve found very valuable in projects where I’m using the Oracle Database. Normally I like using command line tools, but many tasks such as browsing large result sets or data in fat tables, browsing database schema metadata etc. are much faster with SQLDeveloper. SQLDeveloper supports other relational databases and since I’m currently working on a project involving MySQL, I thought I’d give SQLDeveloper (v3.1.07) a little test with MySQL (v5.5).

You can install extensions in SQLDeveloper in a similar fashion as in Eclipse and there’s a MySQL JDBC driver available (Third Party SQLDeveloper extension). For some reason the extension failed to install properly on my Mac: everything looked to be going fine but the installation failed silently for some reason. You can configure JDBC drivers manually in SQLDeveloper, however, so I downloaded the MySQL driver and configured it (preferences / database / third party JDBC drivers). After that, a new tab called “MySQL” appears when creating a new database connection. Here you can specify DB product specific connection parameters.

I was able to successfully connect to my MySQL database but when trying to browse table data on a table containing 5+ M rows, the operation failed with the following error:

Task Error
Java heap space

I don’t remember running into this problem with SQLDeveloper when connecting to Oracle DB. As a workaround I modified the Java VM heap size argument that SQLDeveloper passes to Java VM at launch (sqldeveloper.conf configuration file).

I also, wanted to test if SQLDeveloper would run with my newly installed Java 7 but that turned out to be a bit more difficult. On Mac OS X, changing the Java path in the SQLDeveloper default configuration files had no effect, as this parameter was overridden in a platform specific configuration file that had to be changed (sqldeveloper-Darwin.conf), in order to use an alternate Java VM. The correct configuration file to change was revealed after starting up SQLDeveloper with –verbose flag from the command line:

sqldeveloper.sh --verbose

SQLDeveloper can help in a number of ways when you’re working with Oracle DB including: provide wizards for creating and editing table definitions, import and export data and allow viewing and changing many aspects of database metadata. The SQL Worksheet can help you when writing SQL statements with the autocompletion feature. SQLDeveloper is a great tool to use with Oracle DB, but you should note that some of its features aren’t available in SQLDeveloper for other database products.

development , , ,

Oracle Enterprise Linux now free (of charge)

1 Comment Posted by on 2012-08-01

Linux application software developers often face a choice between two compatible but different OS variants: Red Hat Enterprise Linux (RHEL) and CentOS. Using RHEL can sometimes be problematic for developers because typically some sort of centralized subscription management is required for enabling software updates, and depending on the organization you can get stuck from hours to days. The required bureaucracy can be a really frustrating experience for software developers looking to install just a basic virtualized RHEL guest OS instance for development or QA purposes: 5 minutes and you’re done – if it just wasn’t for the subscription management part! CentOS on the other hand can be freely downloaded and used but the downside is that traditionally publishing updates has dragged behind. Depending on the project, this may not be a big problem for QA and development purposes, but for internet facing production platforms you’d like the security updates to get installed as soon as they get released.

Oracle Enterprise Linux is an enterprise Linux distribution similar to CentOS in that it’s binary compatible with RHEL. It’s also been made freely (as in beer) available recently. The big upside for the app dev use case above is that Oracle promises to publish updates faster than CentOS has done. For operations personnel the benefit is that you can also get paid support for the OS from Oracle as well as some interesting features, such as zero-downtime kernel updates with Ksplice.

Being a bit curious, I downloaded Oracle Linux installation image (Oracle Linux Release 6 Update 3 for x86_64 [64 Bit], 3.5 GB) from Oracle and installed it as a virtualized guest OS instance on my laptop. The installation process worked as expected with RHEL and CentOS, except for the different branding, logos etc., of course. Software updates also installed without problems after initial installation.

So far I’ve dismissed Oracle Linux from consideration as a niche distribution and had some doubts about its continuity, but it does look like a solid OS and it has been around for a while now, so it could be a viable option to consider when choosing an enterprise Linux platform.

For more information see:

development, operations , ,

Java 7 on Mac OS X – finally!

Leave a comment Posted by on 2012-08-01

Apple doesn’t exactly have a history of timely Java releases for Mac OS X so, I didn’t expect Java 7 to be available soon after its GA release, but I was very disappointed to read instead Apple’s announcement in october 2010 stating they will not be supporting Java 7 on Mac OS X. I also was quite sceptic in november, when there was a surprise announcement from Apple and Oracle saying the two companies will be working together to port OpenJDK to Mac OS X. Java 7 was published in july 2011 but patience was required from Mac OS X Java developers still.

When the OpenJDK Java 7 preview packages were finally made available in 2012 they didn’t run on Mac OS X Snow Leopard, so I had to build the JDK from the sources. That was fairly simple but rather time-consuming, and the build process practically rendered my laptop unusable since it used up a lot of CPU, IO and memory resources. Operating system reinstallation is always a huge load of work, with all the backing up, finding a suitable time slot and other arrangements, so it was only last week when I finally managed to find the time for OS X Lion upgrade, but now I’m able to use the Oracle provided JDK 7 installation packages, which makes JDK upgrades a lot easier. So, a year after Java 7 release I’m finally able to run it on my laptop! And one nice thing about Oracle picking up Java on Mac OS X is that they’ve promised to release Java 7 updates simultaneously for Mac, Windows, Linux and Solaris (Henrik on Java). I hope the Mac OS X port code base is well integrated with the rest of the tree and that also future Java major releases like 8 ja 9 will happen in a timely fashion.
